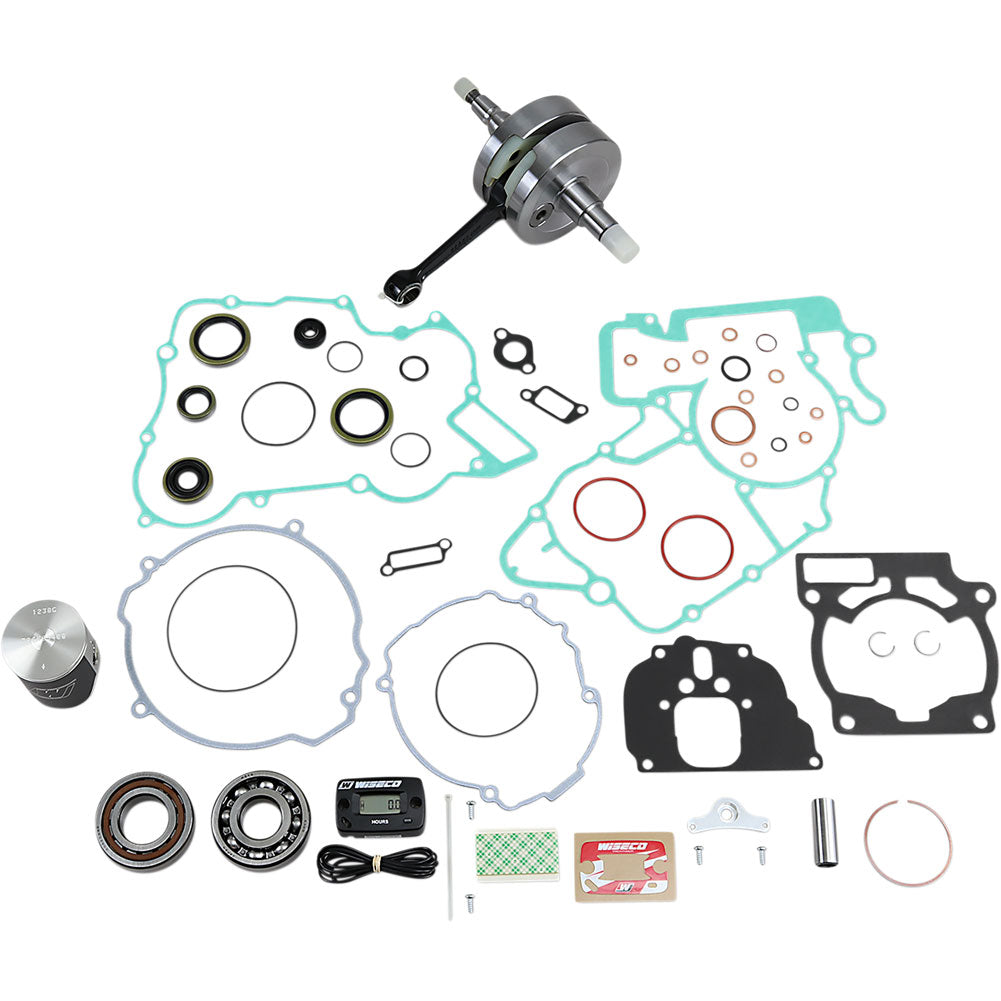

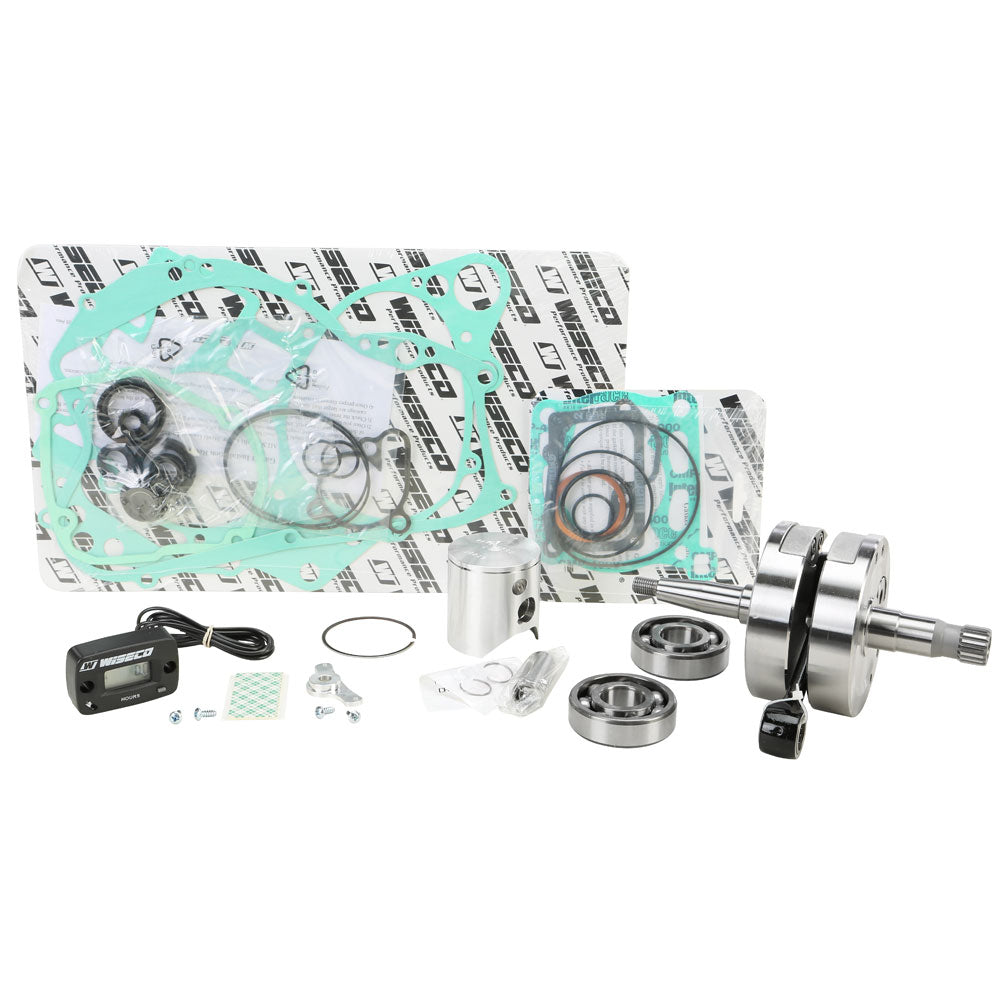

Wiseco's Garage Buddy engine rebuild kits offer everything you need for a bottom and top end rebuild. From the crank to the piston kit, and even an hour meter to track maintenance, everything is included in one box. Whether your machine of choice is a 2-stroke or a 4-stroke, Wiseco can help you with your rebuild.
Crankshaft assembly
OEM quality main bearings
All engine gaskets, seals, and O-rings
Wiseco standard series forged piston kit (piston, ring(s), pin, clips)
Small end bearing (for two-strokes)
Cam chain (for four-strokes)
Hour meter with mounting bracket and hour meter decal
Kit Includes:
-2126CS - 54.00 mm Ring
-754M05400 - Suzuki RM125 '00-03 ProLite 2126CS
-B1013 - Top End Bearing 15 x 19 x 19.5mm
-B1047 - Crank Pin Bearing 22 x 28 x 15.8mm KU
-B5010 - Main Bearing 22 x 56 x 16mm
-Crankshaft
-CW15 - 15mm Round Wire Locks - Set of Two
-Ring - Set
-S467 - PistonPin 15 x 41mm NonChromed TW
-W5766 - THRUST WASHERS(2) 22MM ID X 1.5MM
-W5793 - CRANK PIN - HOLLOW - 22MM X 53MM
-W6385 - TopEnd Gasket Kit
-W8062 - Wiseco Hour/Tach Meter Universal Mount
-W8063 - Wiseco Hour Meter
-WB1153 - Bottom End Gskt Kit
